UDL series stepless transmission features.

1、High speed regulation accuracy: up to 0.5-1 rpm. 2、Variable speed range, output speed ratio can be changed between 1:1.4 and 1:7. 3、High strength, long service life, convenient speed regulation. 4、Continuous working operation, and can run in both positive and negative directions, smooth operation, stable performance, low noise. 5、Compact mechanism, small volume. 6、Adopted high-quality aluminum alloy die-casting molding, beautiful appearance, light weight, never rust. 7、Good adaptation. 7, good adaptability, UDL series stepless transmission can be combined with a variety of reducers to achieve low-speed stepless speed change.

RV worm gear reducer advantageous performance.

1. Compact structure, light volume, small and efficient;

2. Good heat exchange performance, fast heat dissipation.

3. easy to install, sensitive and light, superior performance, easy to maintain and repair.

4. Large rotation speed ratio, high torque, and high overload capacity.

5. stable operation, low noise, durable and long-lasting.

6. Strong applicability, safety and reliability.

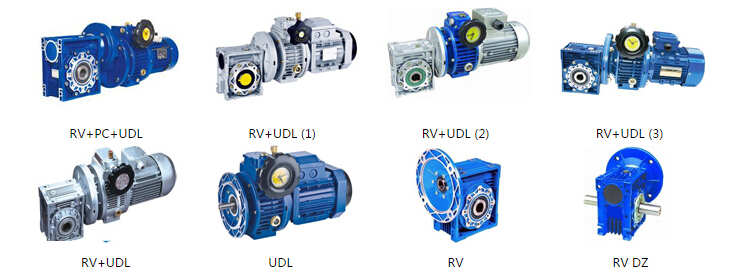

UD(L) planetary cone disk stepless speed changer combined with NMRV worm gear reducer

Product features :

1. choose the combination of planetary cone disk speed control and worm gear reducer to complete the low-speed stepless speed change. 2.

2. High strength, can be frequently forward and reverse rotation, impact resistance, reliable performance.

3 smooth operation, low noise, long life.

Technical parameters:

1 . Input power: 0.12KW-4.0KW

2 . Output speed range (if equipped with four-pole motor): 133-27 rpm; 100-20 rpm; 66-14 rpm; 50-10 rpm; 40-8 rpm; 33-7 rpm; 25-5 rpm; 20-4 rpm; 16-4 rpm; 12-2.5 rpm; 10-2 rpm.
